Smart Charger
for home & business

  • Charging Power 3.7 - 22 kW
  • Push Notifications for Android & iOS
  • Energy Monitoring Calendar

Standard Kit

$670.00

WIFI Cloud Timer

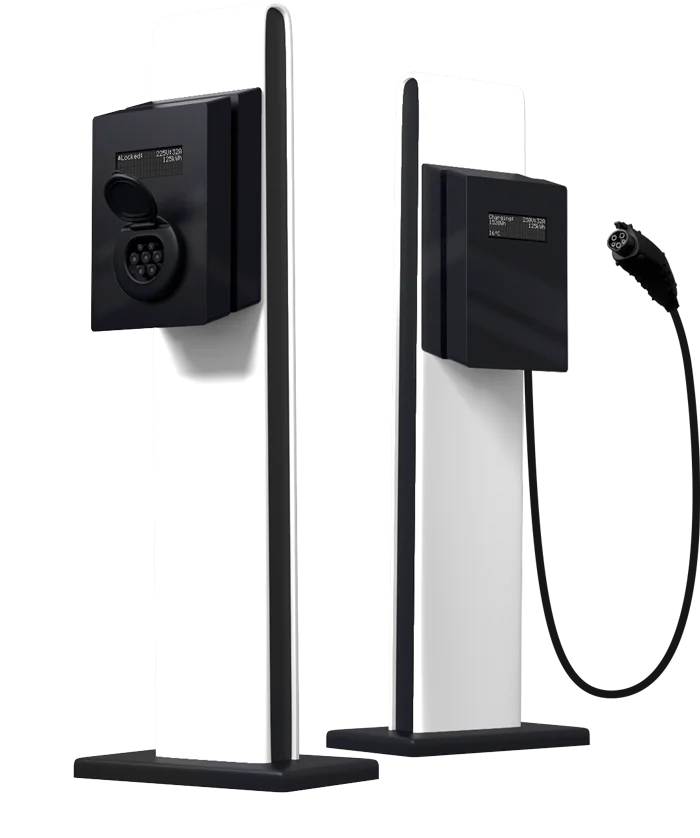

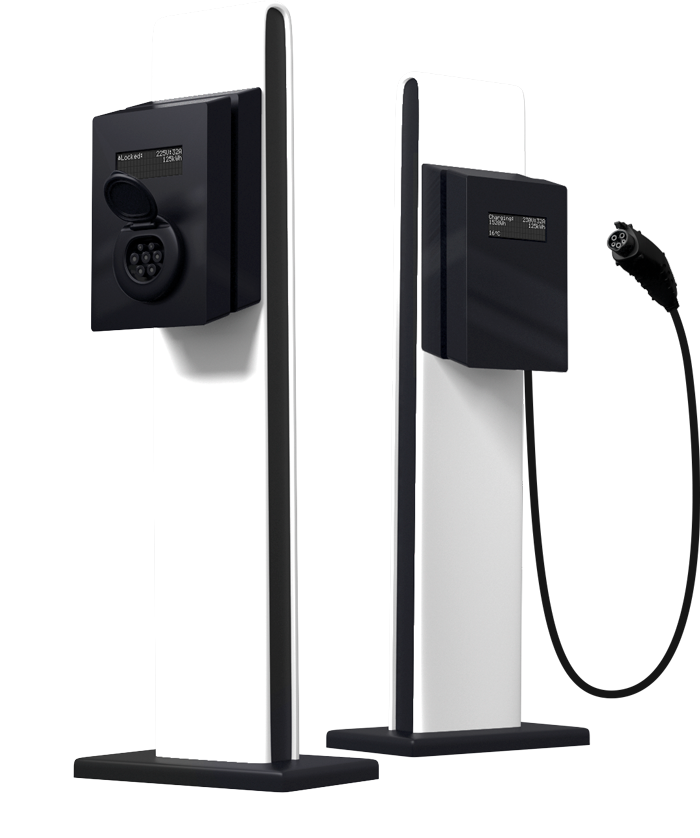

OnCharger OC1 is ready to charge your car anytime. OnCharger provides a high quality yet cost-effective electric car charging point. Charge station has a temperature monitoring feature to stop charging if the high temperature is detected. Charge station can be easily connected to your home WIFI network or become as WIFI spot. Charger OC1 can be mounted on a wall or a metal pedestal. When it is installed in a public place authorization feature prevents charging other cars. For a more safety output voltage is terminated until a car is connected.

Power Control

WIFI AP & Client

Cellular Network

Easy Installation

Web Interface

Detailed Statistics

Remote Power Control

Profit 24/7

WiFi & Cellular

OCPP1.6 & 2.0

Additional API

Message Screen

With only one core product in different versions, OnCharger One can cover all electric vehicles, application cases, areas of use and markets. OnCharger One can easily be connected to any cloud for monitoring, billing or load management in the public and semi-public sector. Power management enables the reduction of power peaks, thereby smoothing the curves of the energy obtained. This result in the maximum use of charging capacity and optimized resource consumption. Charged kilowatt hours can also be calculated with integrated energy meter.

Main Advantages

01 Energy Control

Load management from 1-22kW to not overload your power grid.

02 Intelligent Charging

Seven security self-checks before each EV charging process.

03 High Quality

Internal components manufactured in Germany and the USA.

04 Powerful Dashboard

Control your charging process from your favourite browser.

05 Wireless Technology

Charger communicates with cloud and produces real-time data.

06 Auth Lock

Prevent charging other cars until a driver is authorized.

OnChargeris compatible with all brands of plug-in electric cars.

Audi
Mercedes
Nissan
Peugeot
Volkswagen
Kia
Mitsubishi
BMW
Tesla
Hyundai
LandRover
Jaguar
Toyota
Volvo
Citroen
Renault
Mini
Porsche
Smart
Opel

Technical Data

  • General Information
    MAXIMUM CHARGING POWER
    7,4/22 kW
    CHARGING SOCKET TYPE
    Type1/Type2
    CHARGING CABLE LENGTH
    5m
    Sensors
    Temperature, Voltage, Current
    OPERATING Temperature
    -40℃ +80℃
    Weight
    3 - 7 kg
    Warranty
    1 year
  • Electrical specifications
  • User Interface
  • Communication interfaces

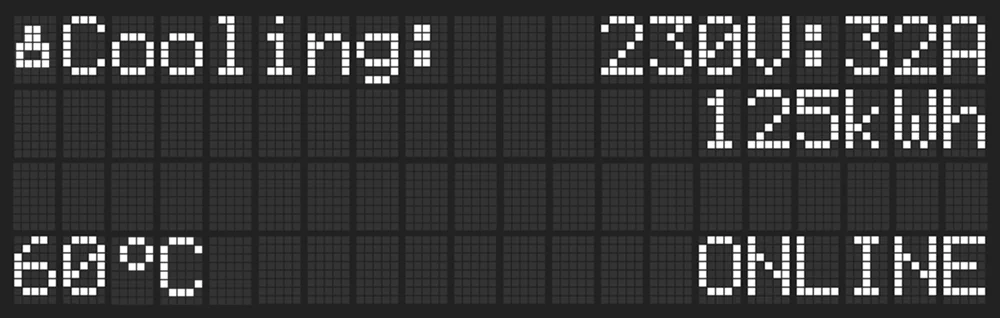

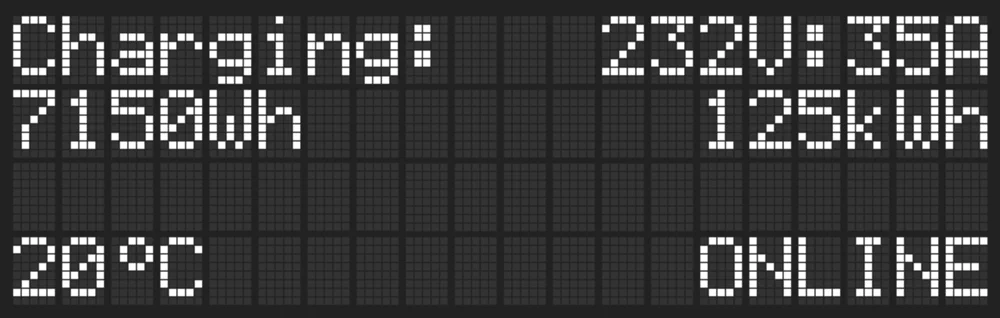

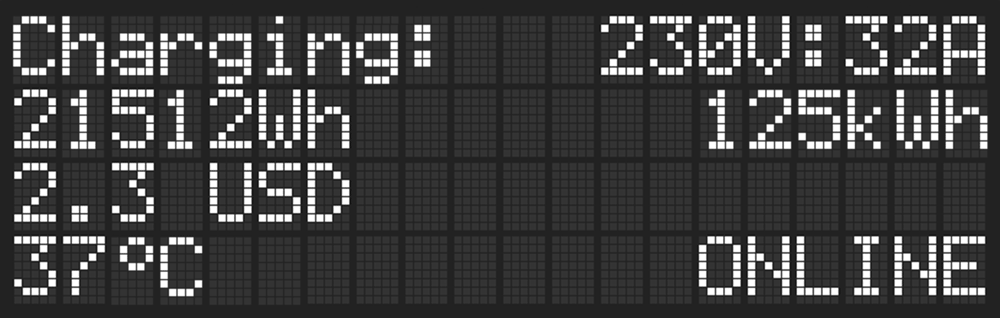

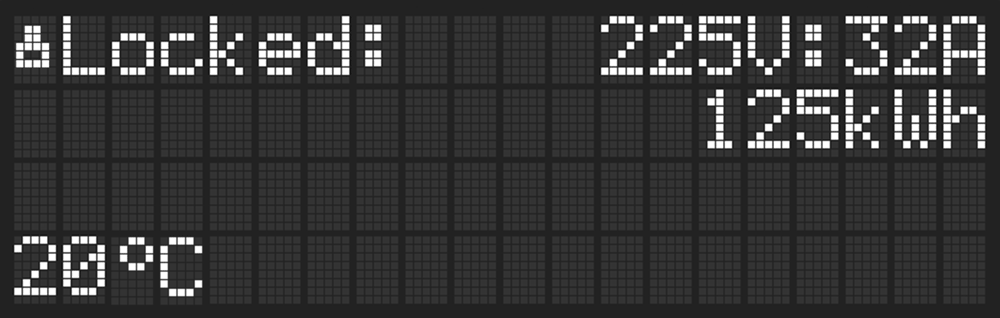

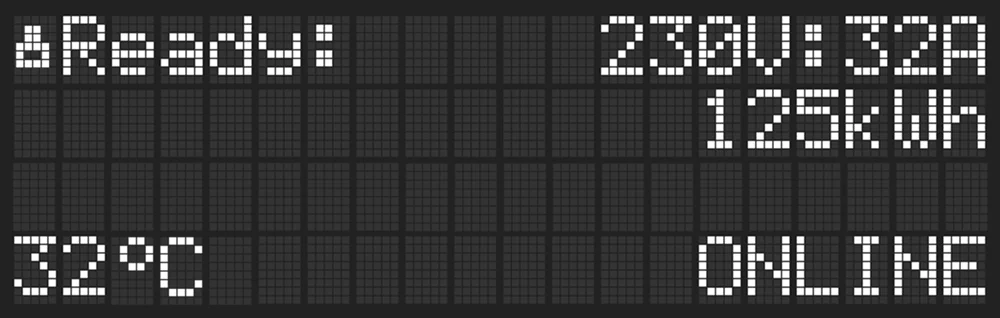

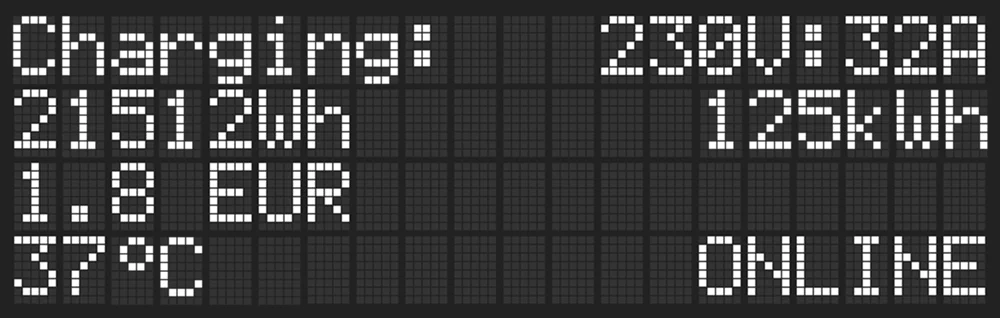

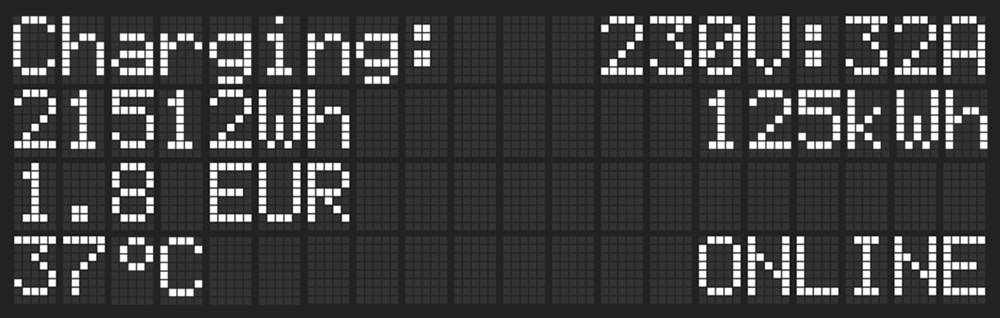

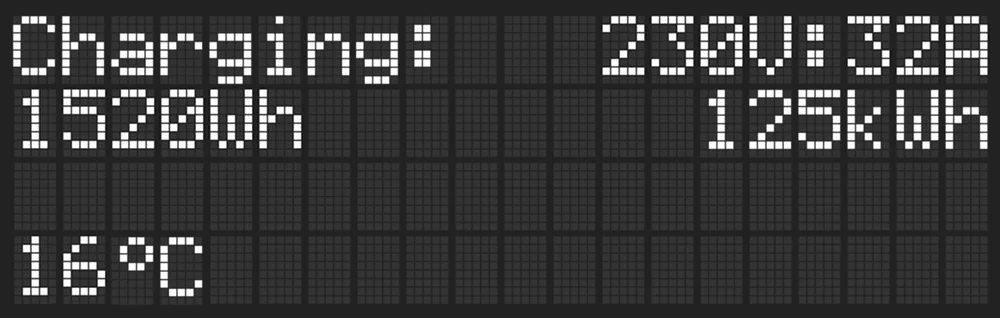

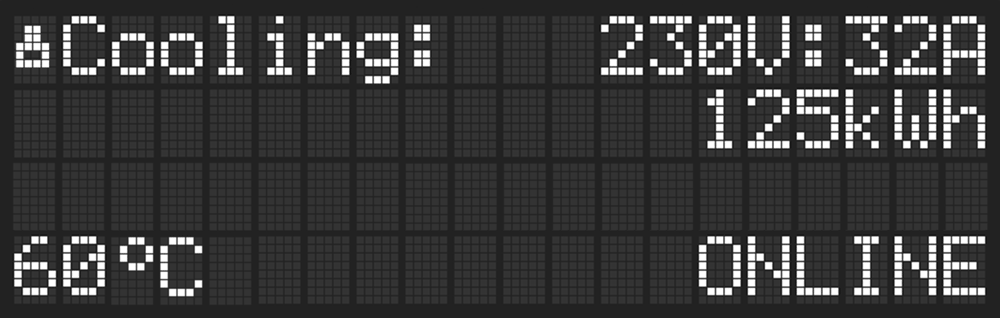

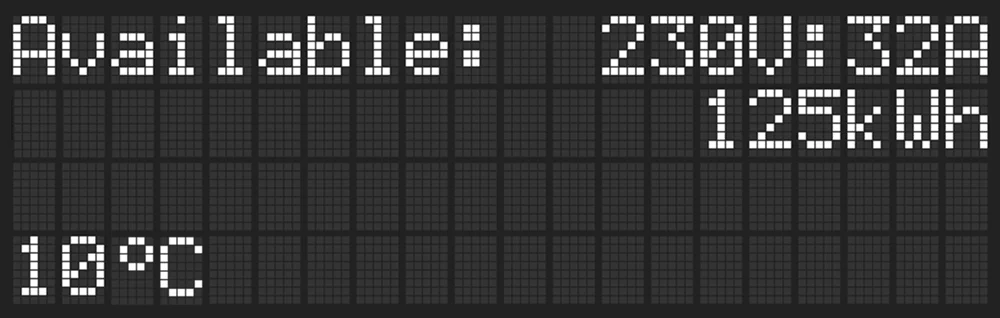

Liquid Crystal Display

Top Left

Authorization icon, charger status and supplied session energy.

Bottom Left

Remote server message and real-time temperature monitoring.

Top Left

Authorization icon, charger status and supplied session energy.

Top Right

Supply voltage, maximum offered current and total supplied energy.

Top Right

Supply voltage, maximum offered current and total supplied energy.

Bottom Right

Server message and cloud connection status (if enabled).

Bottom Left

Remote server message and real-time temperature monitoring.

Bottom Right

Server message and cloud connection status (if enabled).

Cloud Management

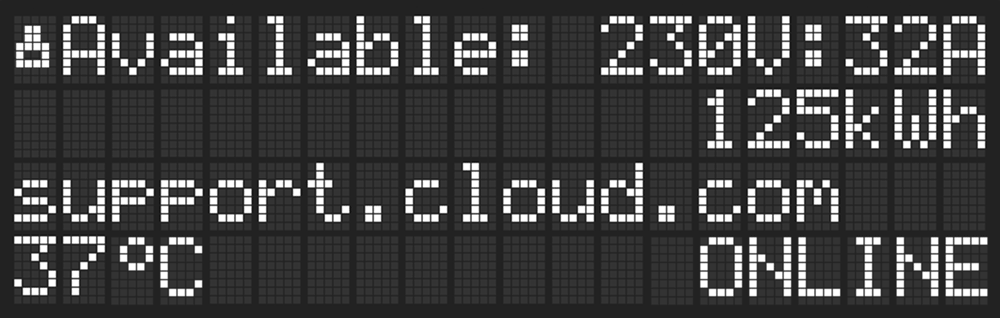

Get profit with OnCharger just in one click. Connect charge station to any EV cloud network in the web interface and your charge point will be turned to business mode. Cloud system or charge point operator is able to send messages that will be displayed on the LCD screen. It can be a contact email or number, price per charging or any other custom message. If cloud management is enabled then connection status is displayed on LCD screen so EV driver can get information if the station is online. Cloud management of OnCharger OC1 is very easy as it has API methods as charge stations from such manufacturers as ABB, Schneider Electric, Setec, KEBA, CIRCONTROL and can be extended on you demand in a short period of time. OnCharger OC1 can be connected to greenflux.nl, chargepointservices.co.uk, chargepoint.com, greenlots.com, cloudcharge.se, evcloud.se, lecircuitelectrique.com, optimile.eu, chargeyourcar.org.uk, etc.

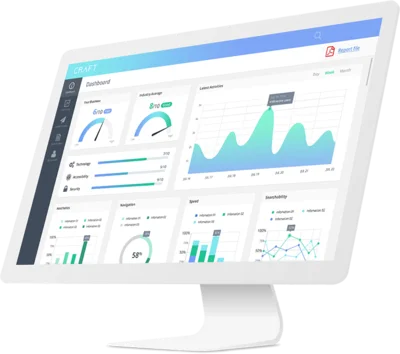

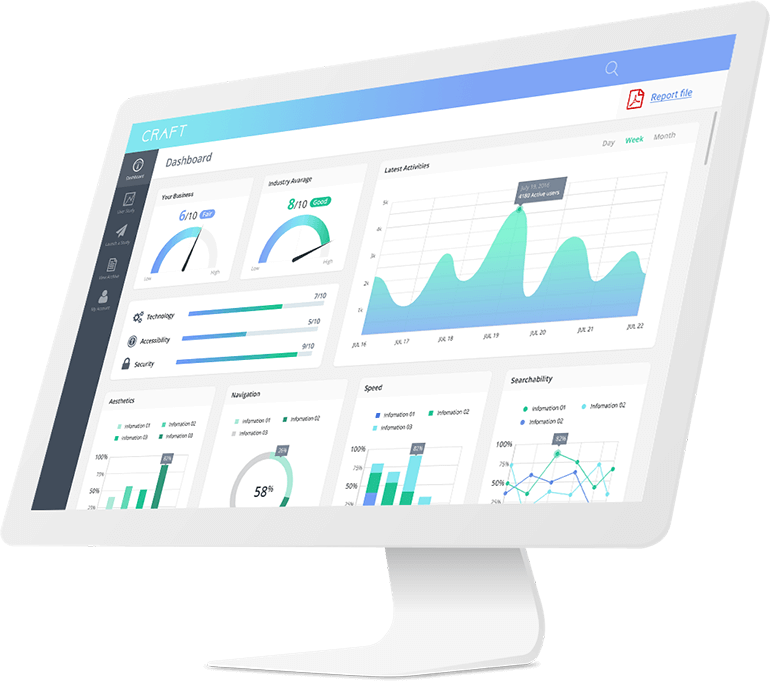

Web Interface

OnCharger web interface turns your EV charging station into an easy-to-manage device. You can lock your station to prevent unauthorized charging, remotely start and stop the charging process, control charging power, and get detailed statistics. Also, a web page includes charge station status and passed security tests. On the services page you can enable cloud connection an turn your charge station into a business mode.

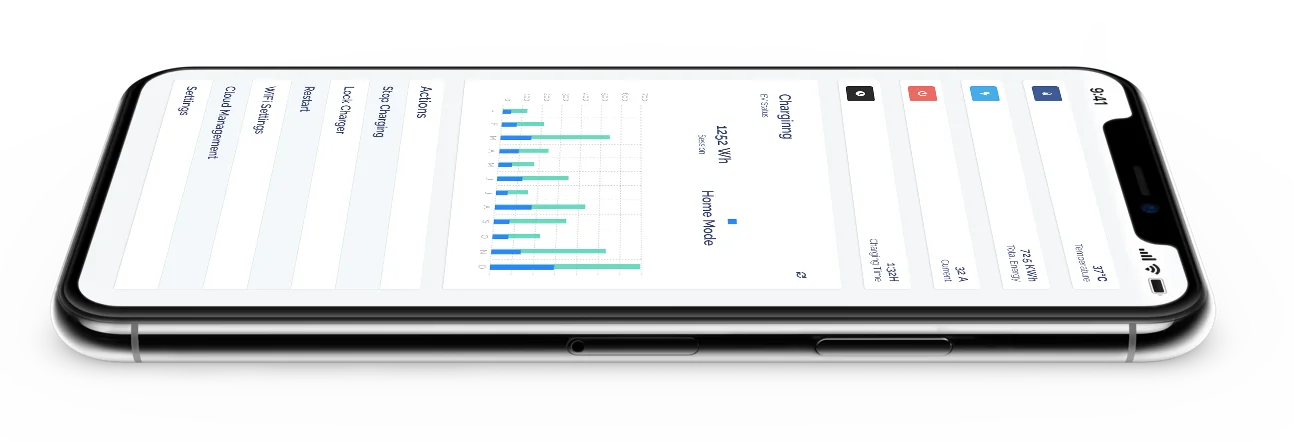

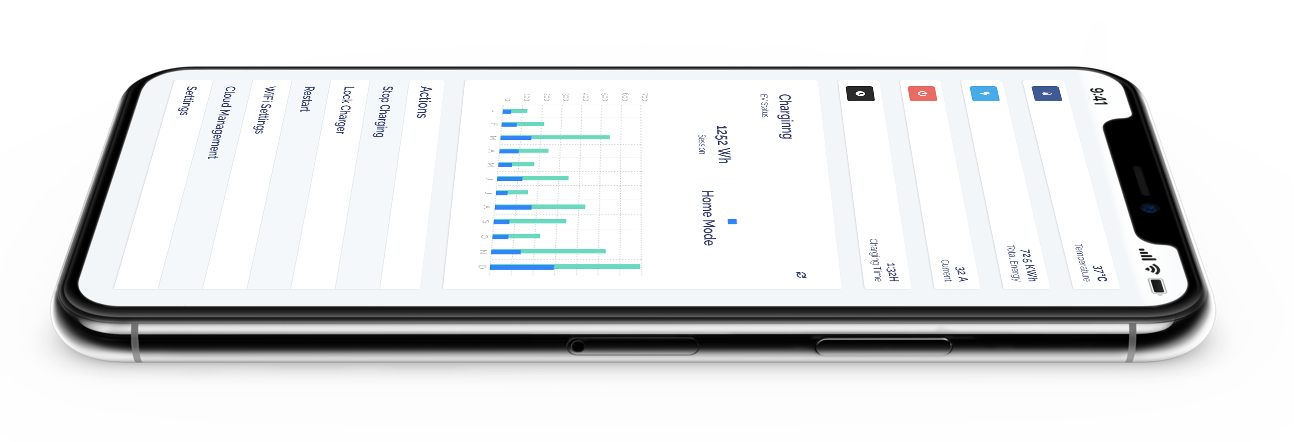

Mobile ready

Get same control features on your phone and tablet as on desktop with the adaptive design.

Security

You can install a password for a web login or wifi AP or both in the settings page.

Local & Remote

You can control charge point via a local WIFI network or remotely via the Internet.

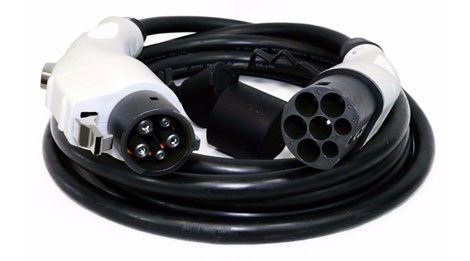

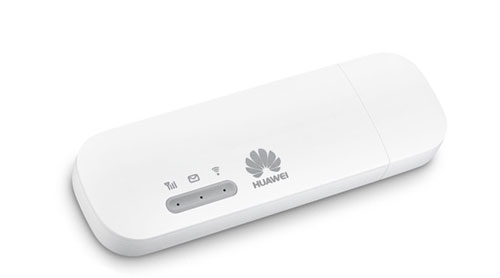

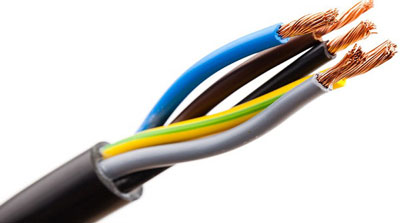

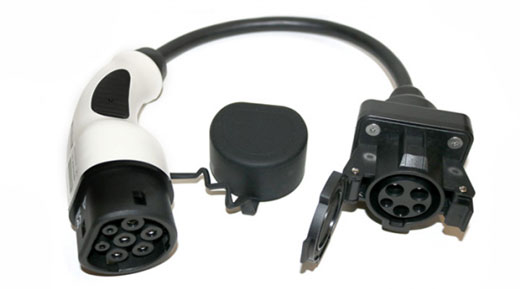

Additional Accessories
